Product Subcategory

LP-RDL-15W

Model No
LP-RDL-15W-73

Specifications
Product Type	3W/4W/6W/9W/12W/15W/18WRound LED Panel Light
Quantity	MOQ: 1
Power	15W
Size	As in Description
Voltage	Input Voltage: AC85-265V; Output: 24-36V

Description

Ultra Thin 15W Round LED Downlight

1. Die-casting Craft, High Quality, Good for heat dissipation

2. Beam angle : 120 degree

3. High Lumen: 90LM/W

4. CE&RoHS With 5 Years Warrenty

5. Aluminum+Acylic

Technical Specification:

Power	15W
Input Voltage	AC85-265V
Power Factor	0.93
LED Source	75pcs SMD2835
LED Chip	Epistar
Luminous Flux	855-950lm
Color Temperature	3000K, 4000K, 5000K, 6000K
CRI	Ra≥ 80
Size (mm)	200*200mm
Hole Size (mm)	185mm
Material	Aluminum alloy+Light Guide Plate
Work Temperature	-25°C to 45°C
Dimmable	Available
Installation Way	Embedded
Lifetime	35000+ Hours
Warranty	5 Years

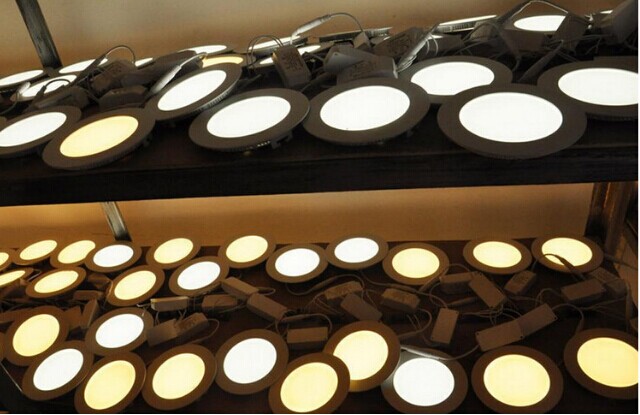

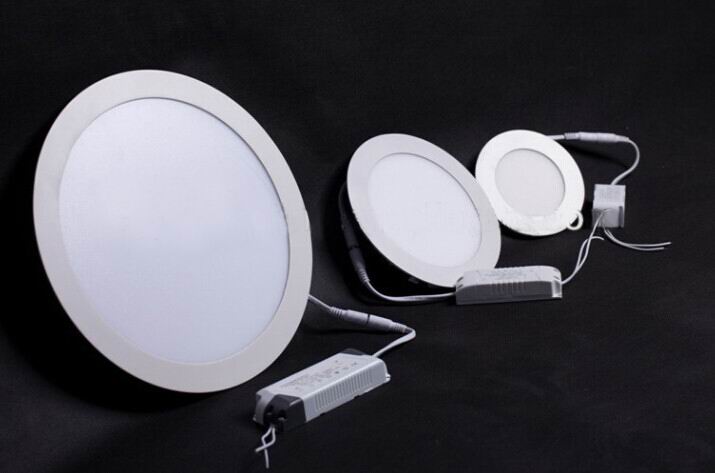

15W Round LED Panel Light's Picture:

15W Round LED Panel Light's Trade Terms:

Payment terms	T/T, Western union, PayPal ,L/C,Escrow
Minimum order quantity	1Pc
Sample lead time	3-7days
Production lead time	7-15days
Packing standard	Single box depart
Shipping port	Singapore
Shipment	By express(DHL/UPS/FEDEX) air or sea

12W Round LED Panel Light's Packing Information:

Product size: φ200*20mm

Mounting Hole:Φ185mm

Inner Size/box:210x240x30mm

G:W (kg):16.1kg

Size/Carton:487x437x250mm

Qty/Carton:30pcs

Our Factory:

Our Certification:

Our Services:

1. For all your inquires about us or our products, we will reply you in detail within 24 hours

2. We own well trained and passional sales & after- sale services who can speak excellent english.

3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.

4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
