LED RF/WIFI Controller (LP-RCTR) - www.LEDcontroller.com.sg
LP-CTR-RF
Model No
LP-CTR-RF-73


Specifications
Product Type As in Description
Quantity MOQ: 1
Power N.A.
Size As in Description
Voltage 220V, 50/60 Hz

Description



RANGE OF CONTROLLERS

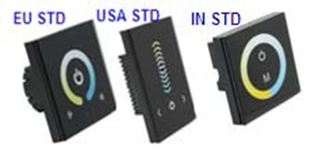

WIFI CONTROLLER, TOUCH/RF/RGBW CONTROLLER & TIMER







INTRODUCTION

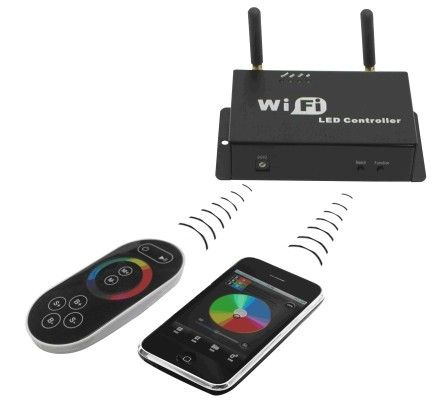

Our WIFI LED Controller follows the traditional technology using infrared and RF technology controller as foundation.  We supply the controller which integrate the newest WIFI technology in the market which makes LED control becomes more convenience and hamonize.



We can use an Android system or IOS system which installed in mobile phone to control the LED lights.  WIFI technology can make our control range more wider with >50M inside building and >100M at outdoor.





TECHNICAL PARAMETERS

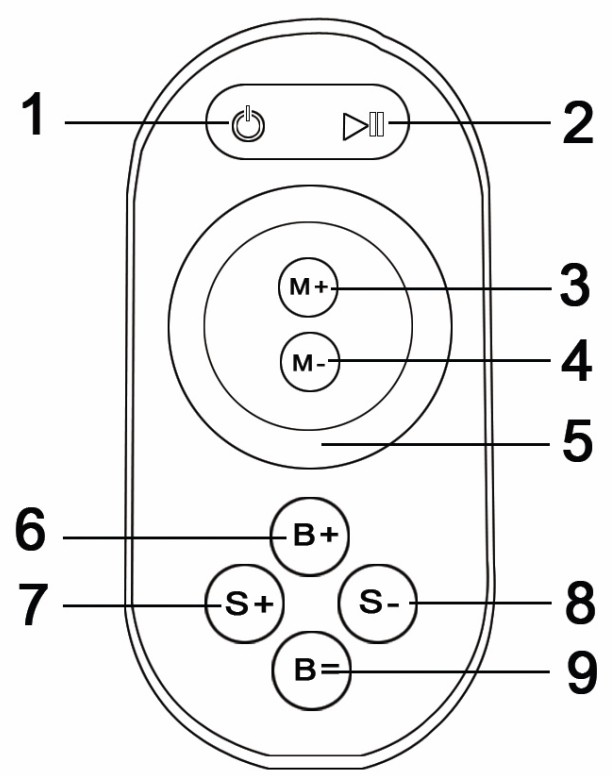

1. Remote control technical parameters

1:Working Temperature:-20-60℃

2:Power Supply:AAA*3

3:Supply Voltage:1.5V*3

4:Standby Power:0.015mW

5:Standby Current:3uA

6:Working Current:200uA

7:Emission Current:10mA

8:Remote Control Distance:about 50m

9:Standby Time:6 Months

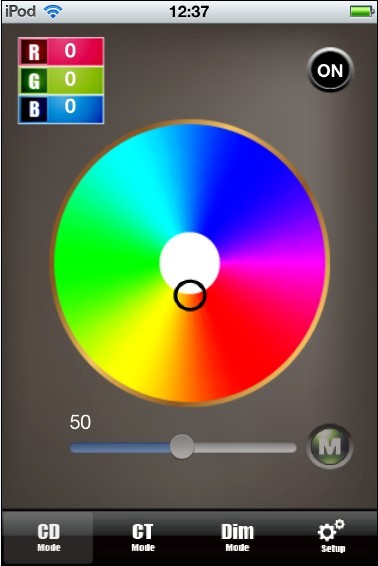

2. Software technical parameters

1:Name:Magic Color 1.0

2:Runtime Platform:Android version support Android system, IOS version support IOS system, equipment must have WIFI function.

3:Byte: Android Version (622K), IOS Version (581K).

4:Language: English

5:Category: Communications



3. Controller technical parameters

1:Working Voltage: DC5--24V

2:Output Control: Flexible to control 3channel, 2channel,1channel LED lamps.

3:Output Current: 4A*3

4:Connect Mode: Common Anode

5:Packing Size: L215*W165*H55mm

6:External Dimension: L107*W65*H30mm

7:Net Weight: 340g

8:Gross Weight: 480g

9:Receiving Sensitivity: 802.11b DSSS(-5dBm),802.11b CCK (-10dBm),802.11g OFDM(-15dBm)
